Kiwi Syslog logs to store with SQL database setup screen shots

Log Kiwi Syslog Daemon to a MS SQL database, storing kiwi syslog in sql database.

Jan 25, 2022•Success Center

FIRST PUBLISHED DATE

11/29/2018 10:37 PM



LAST PUBLISHED DATE

1/25/2022 1:20 AM



OVERVIEW

This article provides screen shots for  Log Kiwi Syslog Daemon to a MS SQL database

ENVIRONMENT

Kiwi Syslog 9.6;Kiwi Syslog 9.7;Kiwi Syslog 9.8

CAUSE

n/a

RESOLUTION

1. Create DB for Kiwi Syslog  in SQL Server.
2. Create ODBC (System DSN) on Kiwi Syslog Server.
3. Create Action in Kiwi Syslog to Store syslogs in MS SQL DB.

• Create DB for Kiwi Syslog in SQL Server

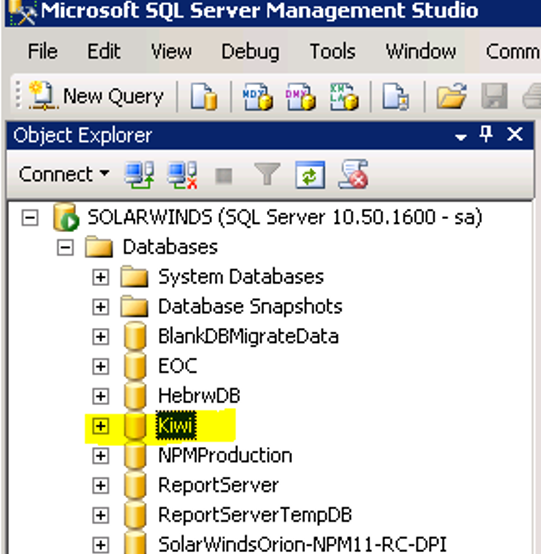

On your SQL server create new database called Kiwi  SQL Management Studio Direct Download Link

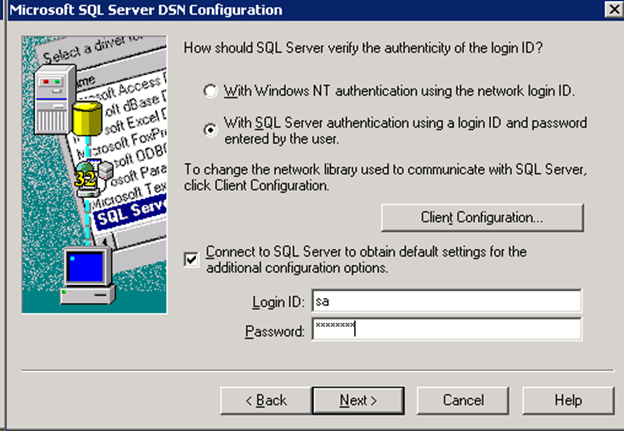

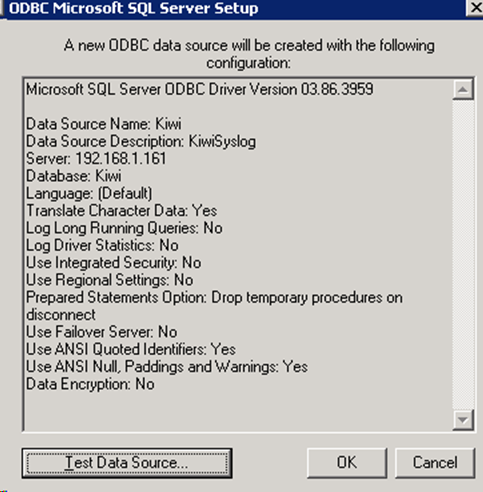

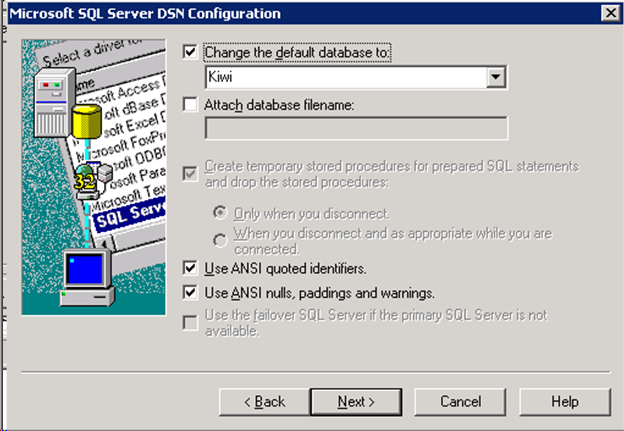

• Create ODBC (System DSN) on Kiwi Syslog Server

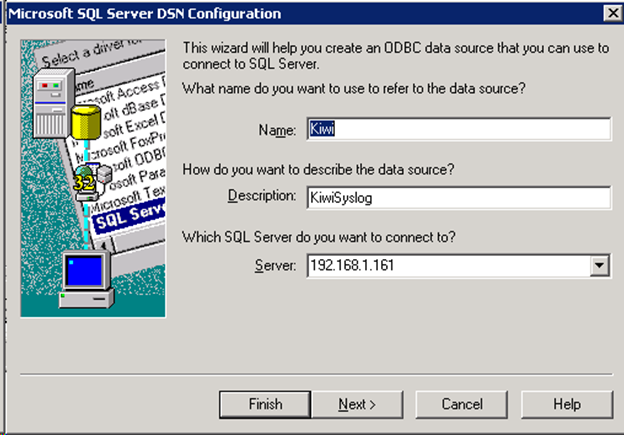

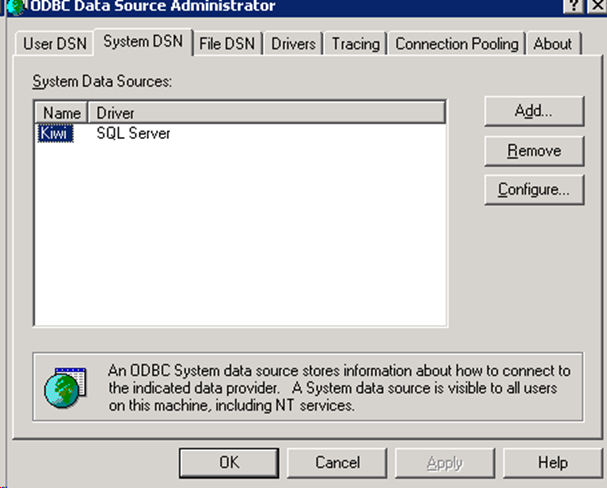

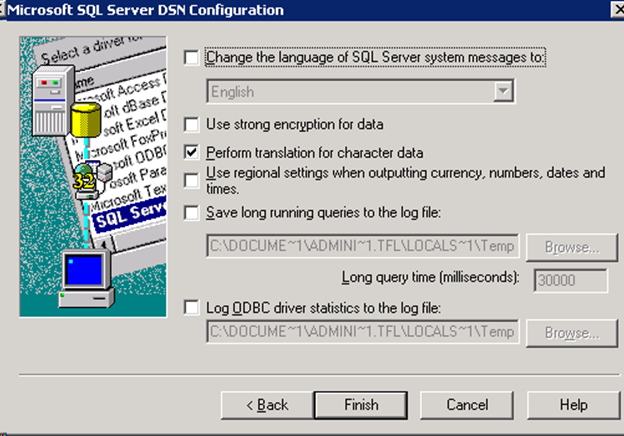

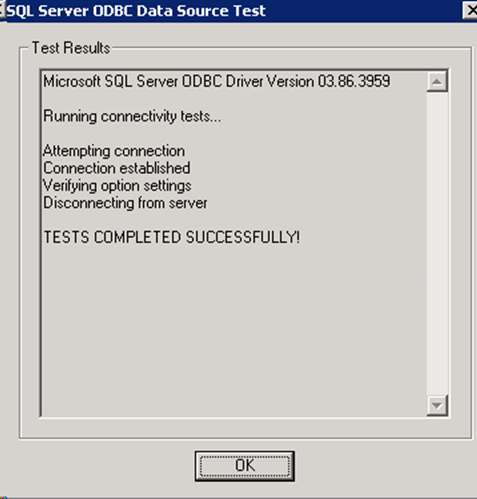

Select the System Data Source, and click Add. Follow the prompts to create the ODBC on Kiwi Syslog Server.

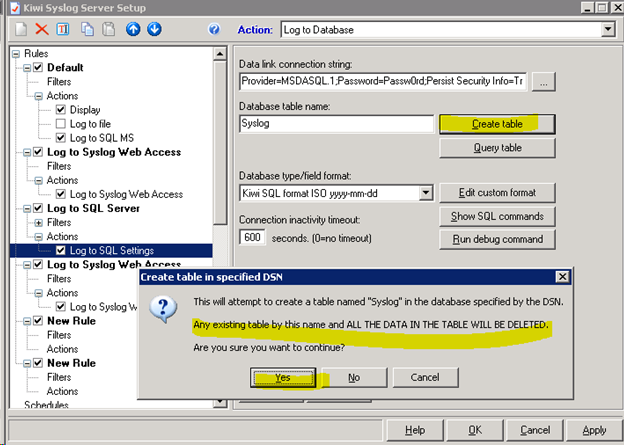

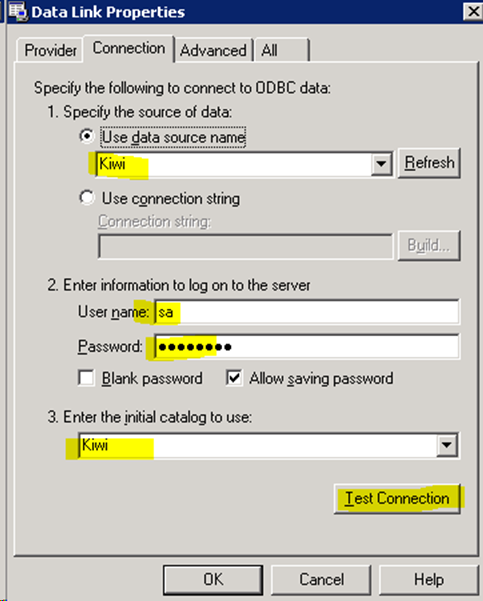

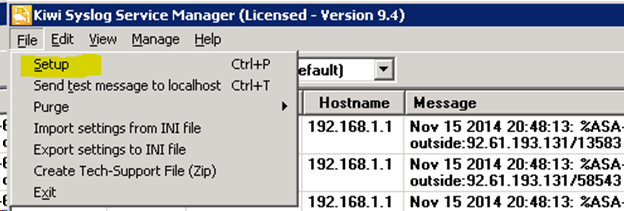

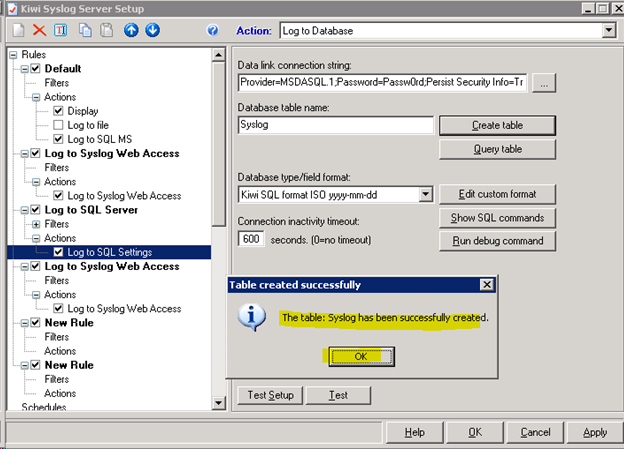

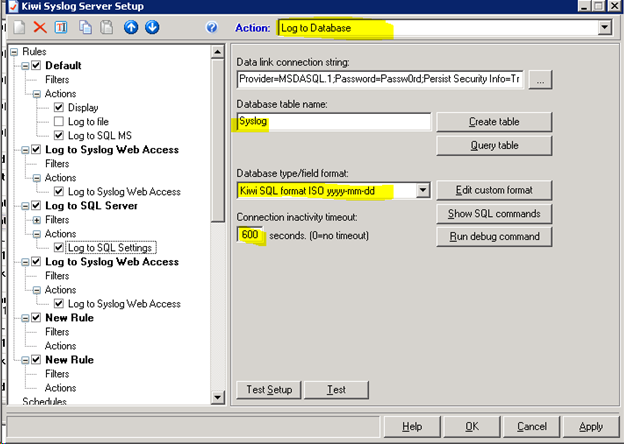

• Call the SQL DSN Under Kiwi Syslog Server Setup and verify the ODBC Connection

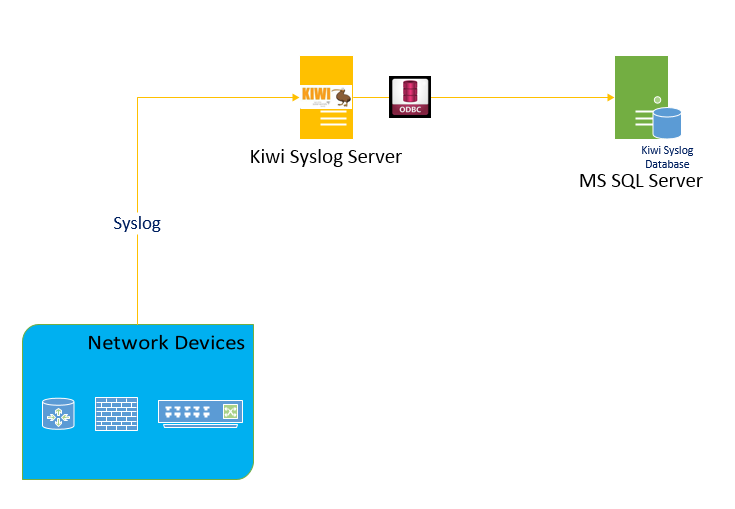

Data will be stored within the SQL server with Kiwi database. Kiwi Syslog Server writes a new log for each device daily, by default.

To learn more about this product, see Documentation for Kiwi Syslog Server .
